Anti-Drift Air Curtain FM-12 / FM-16 / FM-20

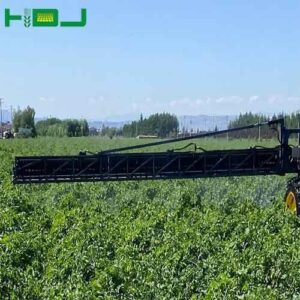

The DUOJIA Anti-Drift Air Curtain is a precision spraying accessory available in FM-12, FM-16, and FM-20 Air Curtain Boom models. It uses a cross-flow fan to create an air curtain wall along the spray boom behind the nozzles, helping reduce droplet drift while improving droplet penetration and coverage.

The system is designed for field spraying, high-speed spraying, low-volume spraying, and spraying applications requiring independent boom section control. Compared with airbag-type air curtain booms, it provides lower energy consumption, higher air velocity, slower air velocity decay, and independent control of air curtain on/off or air speed for each boom section.

Key Features

• Cross-flow fan air curtain — Creates an air curtain wall along the boom behind the nozzles.
• Drift reduction — Reduces droplet drift by 80% and saves 30% of pesticide.
• High-speed operation — Maximum allowable travel speed is ≤ 15 km/h.
• Wind-condition operation — The system can operate under external wind conditions below Level 4.
• Secondary atomization — Refines droplet size, improves penetration and coverage, and supports low-volume spraying. The source specifies 50% water savings compared with conventional boom sprayers.
• Independent section control — Each boom section can independently control air curtain on/off or air speed.
• Adjustable air curtain angle — The angle can be adjusted according to natural wind conditions to support canopy penetration.
• Cross-flow fan configuration — Compared with airbag-type air curtain booms, the system provides low energy consumption, high air velocity, and slower air velocity decay.

Technical Specifications

Note: 1 mu ≈ 0.0667 ha. Specifications are subject to change without notice. Please confirm final parameters with our sales team before system design.

Applications

The Anti-Drift Air Curtain is documented for:

• Field spraying of rice, wheat, cotton, corn, soybean, and other crops
• Anti-drift spraying under moderate wind conditions below Level 4
• High-speed spraying operations
• Low-volume spraying with enhanced droplet penetration and coverage
• Precision spraying systems requiring independent boom section control

Why Choose Anti-Drift Air Curtain

• 80% drift reduction and 30% pesticide savings according to the supplied product information
• Maximum allowable travel speed of ≤ 15 km/h
• Secondary atomization with documented 50% water savings compared with conventional boom sprayers
• Operation under external wind conditions below Level 4
• Independent air curtain control for each boom section
• Adjustable air curtain angle according to natural wind conditions
• Cross-flow fan design with lower energy consumption, higher air velocity, and slower air velocity decay compared with airbag-type air curtain booms

Additional Product Information

Model Configuration

The Anti-Drift Air Curtain is available in three boom lengths:

• FM-12 — 12 m boom length, 29,000 m³/h air volume, 3 kW total fan power, 120 mu/h working efficiency
• FM-16 — 16 m boom length, 40,000 m³/h air volume, 4.5 kW total fan power, 160 mu/h working efficiency
• FM-20 — 20 m boom length, 47,000 m³/h air volume, 5.5 kW total fan power, 200 mu/h working efficiency

All three models use a cross-flow fan, 110° fan nozzles, hydraulic boom lifting, hydraulic boom folding, and support a maximum allowable travel speed of ≤ 15 km/h.

Ordering Information

When requesting the Anti-Drift Air Curtain, please specify:

• Model: FM-12, FM-16, or FM-20
• Fan drive type: DC 48 V brushless motor or AC 220 V motor
• Quantity required

Frequently Asked Questions

What models are available for the Anti-Drift Air Curtain?

The product is available as the FM-12, FM-16, and FM-20 Air Curtain Boom.

What type of fan does the system use?

All three models use a cross-flow fan to create the air curtain behind the spray nozzles.

What is the maximum allowable travel speed?

The maximum allowable travel speed is ≤ 15 km/h for FM-12, FM-16, and FM-20.

Can the air curtain be controlled by boom section?

Yes. Each boom section can independently control the air curtain on/off or air speed.

What fan drive types are available?

The documented options are a DC 48 V brushless motor or an AC 220 V motor.

Which crops are supported?

The supplied specifications list rice, wheat, cotton, corn, soybean, etc. For Xinjiang cotton, the documented configurations are 5-film width for FM-12, 7-film width for FM-16, and 9-film width for FM-20.

Contact DUOJIA

Contact DUOJIA for product details, technical parameter confirmation, model selection, fan drive configuration, and other requirements for integrating the Anti-Drift Air Curtain into your spraying system.
