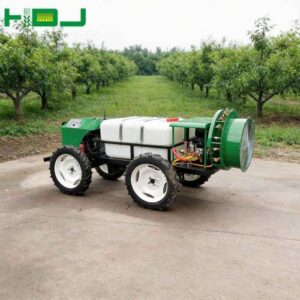

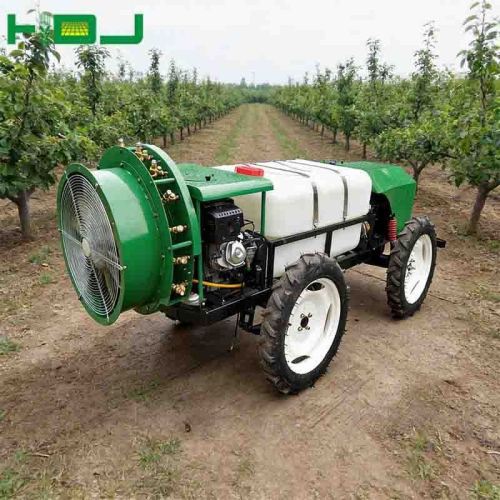

Agricultural Unmanned Vehicle 380C

The Agricultural Unmanned Vehicle 380C is a remote-controlled, electric-driven agricultural unmanned ground vehicle designed for crop protection and spraying in orchards and fields. Developed by DUOJIA, an agricultural machinery manufacturer, the 380C features rear two-wheel drive, differential steering, a large-capacity tank, and a wide spray width for agricultural spraying operations.

The vehicle combines long endurance, adjustable atomization, high ground clearance, and a multi-pump spraying system. Its remote-controlled operating concept is designed to support spraying operations while reducing direct pesticide exposure to the operator.

Key Features

• Rear two-wheel drive and differential steering: The drive and steering configuration provides flexible maneuverability for orchard and field spraying operations.
• Long endurance: Continuous operating endurance is ≥ 15 hours, supporting extended spraying operations.
• Wide spray coverage: Five nozzles are arranged on each side, with a documented spray width of ≥ 30 m.
• Adjustable atomization: Droplet size can be adjusted from 60 μm to 200 μm for different spraying requirements.
• High ground clearance: The minimum ground clearance is 200 mm, supporting field passability.
• Electric drive system: The vehicle uses a 48 V DC working voltage and has maximum power of ≥ 16.4 kW.
• Large tank capacity: The tank capacity is ≥ 380 L.
• Multi-pump spraying system: The system includes 2 peristaltic pumps and 1 three-cylinder plunger pump, with rated flow of ≥ 30 L/min.
• Pneumatic tires: Pneumatic tires are used for operation on uneven ground.

Technical Specifications

Technical Note: Specifications are subject to change without notice. Please confirm the final technical parameters with the DUOJIA sales team before system design.

Applications

The Agricultural Unmanned Vehicle 380C is designed for:

• Orchard spraying and plant protection
• Field crop pest and disease control
• Foliar fertilization
• Large-area spraying requiring a spray width of ≥ 30 m
• Remote-controlled spraying operations to reduce pesticide exposure

Why Choose Agricultural Unmanned Vehicle 380C

• ≥ 15 hours of endurance supports extended continuous operation.
• ≥ 30 m spray width provides wide spraying coverage.
• ≥ 380 L tank capacity provides a large liquid capacity for spraying operations.
• Differential steering supports flexible maneuverability.
• 200 mm minimum ground clearance supports operation where field passability is required.
• ≥ 16.4 kW maximum power and 48 V DC working voltage provide the documented electric-drive configuration.
• 60 μm – 200 μm atomization provides an adjustable droplet-size range.
• Two peristaltic pumps and one three-cylinder plunger pump provide a rated flow of ≥ 30 L/min.
• Pneumatic tires are specified for operation on uneven ground.

Ordering Information

When placing an inquiry, please specify:

• Model: Agricultural Unmanned Vehicle 380C
• Quantity required
• Any additional configuration requirements

Frequently Asked Questions

What is the Agricultural Unmanned Vehicle 380C?

The 380C is a remote-controlled, electric-driven agricultural unmanned ground vehicle designed for crop protection and spraying in orchards and fields.

What is the tank capacity and spray width?

The tank capacity is ≥ 380 L, and the spray width is ≥ 30 m.

What is the operating endurance of the 380C?

The documented continuous operating endurance is ≥ 15 hours.

Can the atomization level be adjusted?

Yes. The documented droplet-size range is 60 μm – 200 μm.

What is the maximum remote-control distance?

The supplied product information describes the vehicle as remote-controlled but does not provide a specific remote-control effective distance. No additional distance value is stated here.

Contact DUOJIA

Contact DUOJIA to request product information and confirm the technical parameters, configuration requirements, quantity, and application requirements for the Agricultural Unmanned Vehicle 380C.
