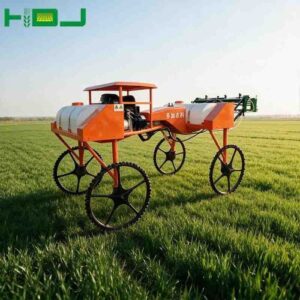

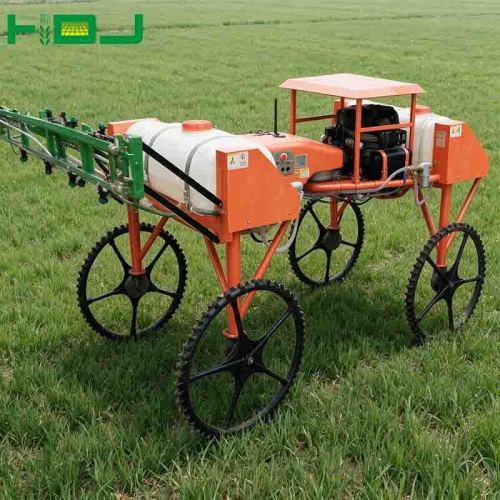

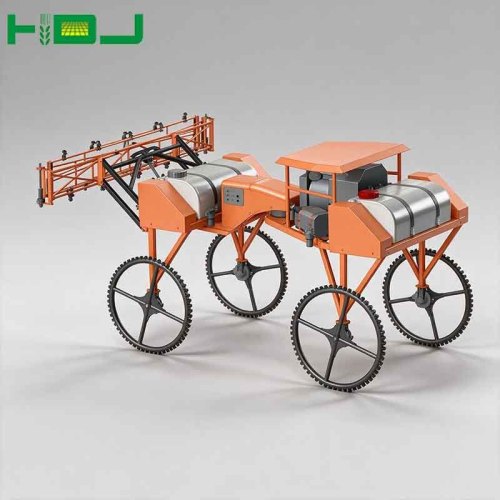

3WYP-270 Unmanned Self-Propelled Boom Sprayer

The 3WYP-270 is an unmanned self-propelled boom sprayer manufactured by DUOJIA, an agricultural machinery manufacturer. It combines a gasoline engine, intelligent control, and remote operation for crop protection and fertilization.

The machine is designed for operation in both paddy fields and dry land. Its documented configuration includes four-wheel drive, articulated steering, high-precision nozzles, and a lightweight body with strong power. Remote control provides man-machine separation during operation, while optional autonomous navigation supports path planning and autonomous operation.

Key Features

• Remote control and man-machine separation: Remote operation separates the operator from the machine during spraying and supports documented safe and uniform operation.
• High-precision nozzles: The spraying system provides excellent atomization and fine droplets. Target-oriented application can save more than 50% of water and chemicals.
• Four-wheel drive: The four-wheel-drive system provides strong power and supports crossing field ridges.
• Lightweight body with narrow wheel design: The lightweight body provides good field passability, while the 2–4 cm narrow wheel design reduces crop damage.
• Intelligent control: The machine uses intelligent control together with remote operation.
• Optional autonomous navigation: Autonomous navigation is available as an option for path planning and autonomous operation.
• Optional multi-purpose equipment: Optional fertilizing and seeding devices can extend the machine to multi-purpose operation.

Technical Specifications

Technical Note: 1 mu ≈ 0.0667 ha. Specifications are subject to change without notice. Please confirm final parameters with the DUOJIA sales team before system design.

Applications

The 3WYP-270 is documented for the following applications:

• Pest and disease control for field crops and cash crops
• Fertilization operations
• Herbicide, insecticide, fungicide, and water-soluble fertilizer spraying
• Spraying in paddy fields and dry land
• Precision agriculture with optional autonomous navigation
• Multi-purpose operation with optional fertilizing and seeding devices

Why Choose 3WYP-270 Unmanned Self-Propelled Boom Sprayer

• Remote control provides man-machine separation during operation.
• High-precision nozzles provide excellent atomization and fine droplets.
• Target-oriented application can save more than 50% of water and chemicals.
• Four-wheel drive provides strong power for field operation and crossing field ridges.
• The 2–4 cm narrow wheel design reduces crop damage.
• Optional autonomous navigation supports path planning and autonomous operation.
• Optional fertilizing and seeding devices support multi-purpose operation.
• Working efficiency is up to 40 mu/h.
• Remote control effective distance is ≤ 500 m.

Ordering Information

When placing an inquiry, please specify:

• Model: 3WYP-270 Unmanned Self-Propelled Boom Sprayer
• Optional autonomous navigation: Yes / No
• Optional fertilizing and seeding devices: Yes / No
• Quantity required

Frequently Asked Questions

What is the 3WYP-270?

The 3WYP-270 is an unmanned self-propelled boom sprayer with a gasoline engine, intelligent control, and remote operation for crop protection and fertilization.

What is the tank capacity of the 3WYP-270?

The rated tank capacity is 270 L.

What are the working pressure and maximum travel speed?

The working pressure is 0.2–0.5 MPa, and the maximum travel speed is 9 km/h.

What is the effective remote control distance?

The documented remote control effective distance is ≤ 500 m.

Is autonomous navigation standard on the 3WYP-270?

No. Autonomous navigation is available as an optional configuration for path planning and autonomous operation.

Can the machine perform fertilizing or seeding operations?

Optional fertilizing and seeding devices are available, allowing the machine to support multi-purpose operation.

Contact DUOJIA

Contact DUOJIA for product information, technical parameter confirmation, configuration requirements, quantity requirements, and optional autonomous navigation or fertilizing and seeding equipment for the 3WYP-270 Unmanned Self-Propelled Boom Sprayer.
