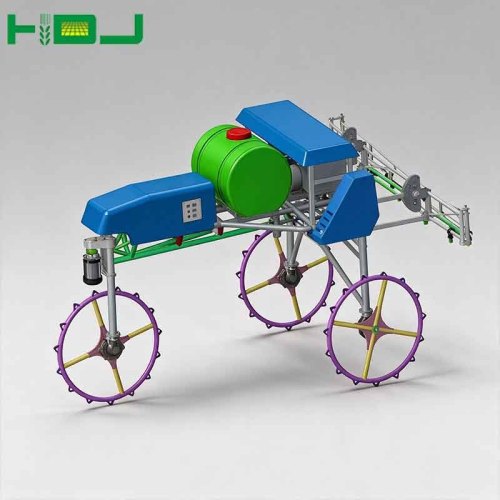

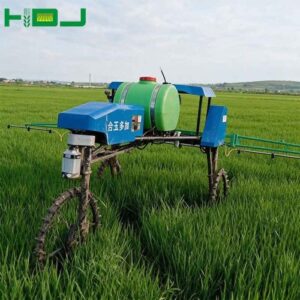

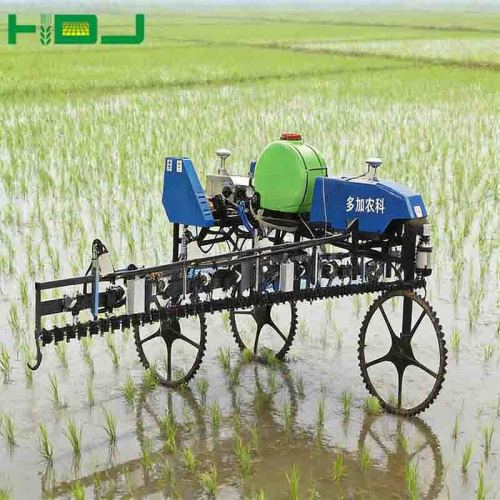

3WYP-160 / 3WYP-160B Self-Propelled Boom Sprayer

The 3WYP-160 and 3WYP-160B are intelligent self-propelled boom sprayers designed for crop protection and fertilization in both paddy and dry land. The product range combines remote control and man-machine separation, while the 3WYP-160 is identified as a Beidou Navigation Green Efficient Sprayer and the 3WYP-160B as a Remote-Controlled Self-Propelled Boom Sprayer.

Manufactured by DUOJIA, an agricultural machinery manufacturer, the machines use high-precision nozzles for fine droplets and uniform spraying. The equipment is designed for pest and disease control, fertilization, and spraying of herbicides, insecticides, fungicides, and water-soluble fertilizers.

Key Features

• Remote control and man-machine separation: Remote-controlled operation supports separation between the operator and machine during spraying.
• High-precision nozzles: The nozzles provide excellent atomization and fine droplets. Target-oriented application can save more than 50% of water and chemicals.
• Lightweight body with strong power: The lightweight structure is designed for good field passability, while the narrow wheel design of 2–4 cm reduces crop damage.
• Three-wheel drive and front-wheel steering: The self-propelled structure combines three-wheel drive with front-wheel steering for field operation.
• Beidou navigation: The documented Beidou navigation remote control accuracy is ≤ 2.5 cm.
• Simple operation and low maintenance: The source describes the machine as easy to learn and operate, with low maintenance cost compared with aircraft or conventional ground machinery of similar efficiency.

Technical Specifications

Technical Note: 1 mu ≈ 0.0667 ha. Specifications are subject to change without notice. Please confirm final parameters with the DUOJIA sales team before system design.

Applications

The 3WYP-160 / 3WYP-160B is documented for:

• Pest and disease control for field crops and cash crops
• Fertilization operations
• Herbicide, insecticide, fungicide, and water-soluble fertilizer spraying
• Spraying in paddy fields and dry land
• Precision agriculture using Beidou navigation and remote control

Why Choose 3WYP-160 / 3WYP-160B

• Remote control supports man-machine separation during operation.
• High-precision nozzles provide fine droplets and uniform spraying.
• Target-oriented application can save more than 50% of water and chemicals.
• The 2–4 cm narrow wheel design reduces crop damage.
• Lightweight construction and strong power support field passability.
• Beidou navigation remote control accuracy is ≤ 2.5 cm.
• Documented working efficiency is 40 mu/h.
• The machine is suitable for both paddy and dry land operations.

Ordering Information

When making an inquiry, please specify:

• Model: 3WYP-160 (Beidou Navigation Green Efficient Sprayer) or 3WYP-160B (Remote-Controlled Self-Propelled Boom Sprayer)
• Quantity required
• Any additional navigation or control requirements

Frequently Asked Questions

What is the 3WYP-160 / 3WYP-160B?

The 3WYP-160 and 3WYP-160B are self-propelled boom sprayers designed for pest and disease control and fertilization in paddy and dry land. The product range uses remote control and man-machine separation.

What is the tank capacity of the 3WYP-160?

The rated tank capacity is 160 L.

What are the working pressure and maximum travel speed?

The working pressure is 0.2–0.5 MPa, and the maximum travel speed is 9 km/h.

Is the rear wheel track adjustable?

Yes. The rear wheel track is adjustable from 1750–2100 mm.

What is the Beidou navigation remote control accuracy?

The documented Beidou navigation remote control accuracy is ≤ 2.5 cm.

What crops and applications are supported?

The product is documented for pest and disease control and fertilization of field crops and cash crops. It can be used for herbicide, insecticide, fungicide, and water-soluble fertilizer spraying in both paddy fields and dry land.

Contact DUOJIA

Contact DUOJIA for product information, technical parameter confirmation, quantity requirements, and additional navigation or control requirements for the 3WYP-160 / 3WYP-160B self-propelled boom sprayer.
