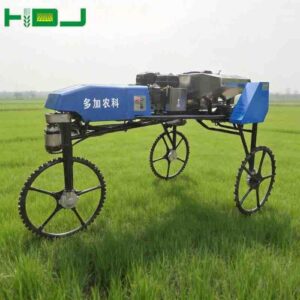

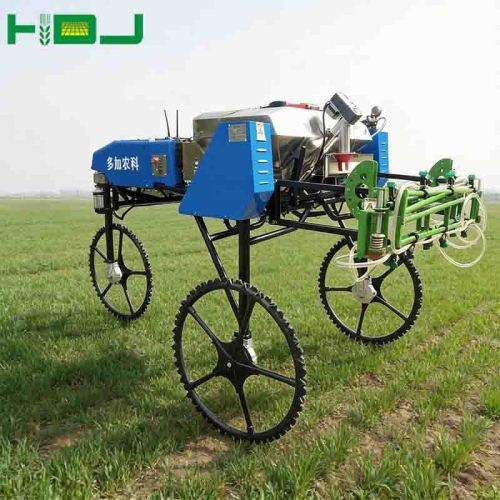

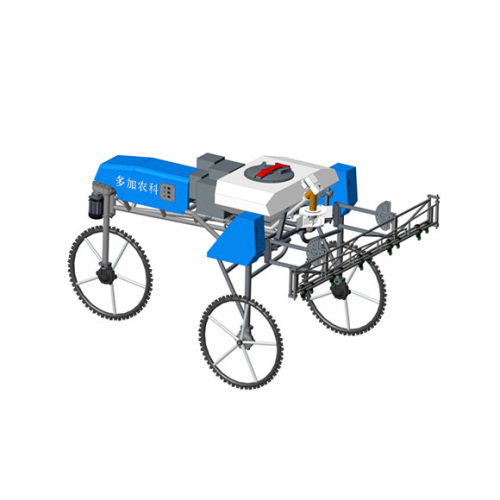

The 2FZH-200 Intelligent Variable Rate Spreader is a hybrid fuel-electric, self-propelled agricultural machine with remote control and autonomous navigation. Model 2FZH-200 integrates fertilizing, seeding, and spraying functions for wheat and rice operations. Its variable-rate spreading function automatically adjusts the spreading rate according to travel speed, while the three-wheel drive system and narrow wheels are designed to reduce crop damage.
| Model: | 2FZH-200 | Main Function: | Fertilizer Spreading, Seed Spreading and Agricultural Spraying |
|---|---|---|---|
| Operating Method: | Self-Propelled | Control Method: | Remote-Controlled |
| Steering Type: | Front-Wheel Steering | Spraying System: | Boom Spraying |
| Fertilizer Spreading Width: | 8 m | Seed Spreading Width: | 8 m |
The 2FZH-200 Intelligent Variable Rate Spreader is a hybrid fuel-electric, self-propelled agricultural machine with remote control and autonomous navigation. Model 2FZH-200 integrates fertilizing, seeding, and spraying functions for wheat and rice operations. Its variable-rate spreading function automatically adjusts the spreading rate according to travel speed, while the three-wheel drive system and narrow wheels are designed to reduce crop damage.
The machine supports early uniform sowing and base fertilizing of wheat and rice, as well as later-stage topdressing and spraying. It uses man-machine separation, one-button start/stop, and a 200 L rated tank capacity.
| Parameter | Unit | Specification |
| Model Name | / | 2FZH-200 Intelligent Variable Rate Spreader |
| Structure Type | / | Self-propelled (remote-controlled) |
| Steering Type | / | Front-wheel steering |
| Overall Dimensions | mm | 3200 × 1680 × 1800 |
| Rated Tank Capacity | L | 200 |
| Max. Travel Speed | km/h | 7.2 |
| Rated Generator Power | kW | 7.6 (DC 48 V) |
| Battery Capacity | Ah | 20 |
| Parameter | Unit | Specification |
| Boom Length | m | 7 |
| Working Pressure | MPa | 0.2–0.5 |
| Working Efficiency | mu/h | 40 |
| Parameter | Unit | Specification |
| Working Width | m | 8 |
| Max. Fertilizing Rate | jin/min | 40 (≈ 20 kg/min) |
| Working Efficiency | mu/h | 40 |
| Parameter | Unit | Specification |
| Working Width | m | 8 |
| Max. Seeding Rate | jin/min | 30 (≈ 15 kg/min) |
| Working Efficiency | mu/h | 40 |
Unit reference: 1 mu ≈ 0.0667 ha; 1 jin = 0.5 kg.
Specifications are subject to change without notice. Please confirm final parameters with the DUOJIA sales team before system design.
The 2FZH-200 is documented for:
The 2FZH-200 combines autonomous navigation, hybrid fuel-electric power, and three agricultural functions in one machine. Its variable-rate spreading function adjusts the spreading rate according to travel speed, while the narrow-wheel three-wheel-drive configuration is designed to reduce crop damage.
For wheat and rice operations, the machine provides documented working efficiency of up to 40 mu/h for spraying, fertilizing, and seeding.
When requesting the 2FZH-200, buyers should specify:
For technical confirmation and system design, final product parameters should be confirmed with DUOJIA before ordering.
The 2FZH-200 is an intelligent variable rate spreader with a hybrid fuel-electric power system, autonomous navigation, remote-controlled self-propelled structure, and integrated fertilizing, seeding, and spraying functions.
The rated tank capacity is 200 L.
The maximum travel speed is 7.2 km/h.
The documented working efficiency is 40 mu/h for spraying, fertilizing, and seeding.
The supplied product information identifies wheat and rice for early uniform sowing and base fertilizing, as well as later-stage topdressing and spraying.
Buyers should provide the required model, quantity, and any additional configuration requirements.
Hefei Duojia Agricultural Technology Co., Ltd. is an agricultural machinery manufacturer specializing in the research and development, manufacturing, sales, and service of intelligent agricultural machinery, agricultural spraying equipment, related components, and spraying systems.
For the 2FZH-200 Intelligent Variable Rate Spreader, contact DUOJIA to discuss product details, final technical parameters, configuration requirements, system design, and quotation requirements.
